Model VS-DC Short Retractable Soot Blower

  • Oil Well Survey Instrument Company

    Model VS-DC Short Retractable Soot Blower is a short travel, approximately 10 inches, retractable type unit used primarily for cleaning slag from the boiler wall tubes.

    FEATURES

    • The soot blower can either be driven by electric motor, air motor, or manual operation.
    • Mounting of the soot blower is flexible in that it can be mounted conventionally with the poppet valve straight down, out to the left or straight out to the right.
    • Blowing pressure can be changed by moving the adjustable pressure control disc.
    • Blowing medium can be superheated steam, saturated steam or compressed air.
    • A unique floating disc design allows for proper sealing of the blowing medium during temperature change.
    • Effective control of the start stop position of the venturi eliminates boiler tube erosion.

Diagrams & Data

Main Technical Data

Travel 267 ± 12.7mm

Blowing Head 0.8 ~ 1.5Mpa

Efficient blowing radius ~2m

Traveling moving speed 290mm/min

Rotation speed 2.5r.p.m.

Nozzle number and size 1 x25.4

Nozzle back rake angle

Medium consumption 30 ~ 90KG/min

Electric motor 0.18KW/3P/50Hz

Weight ~110KG

Furnace Soot Blower General Drawing

vsdcdiagram
vsdc_pic1

VS-DC Drive Mechanism

Structure

VS-DC soot blower is mainly made up of gooseneck valve, feed tube, lance and nozzle, speed-down transmission mechanism, backing plate, electric control mechanism, and protective cover.

vsdc_pic2

VS-DC Soot Blower

vsdc_pic3

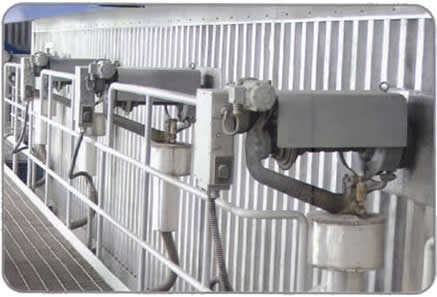

VS-DC Soot Blower Layout
